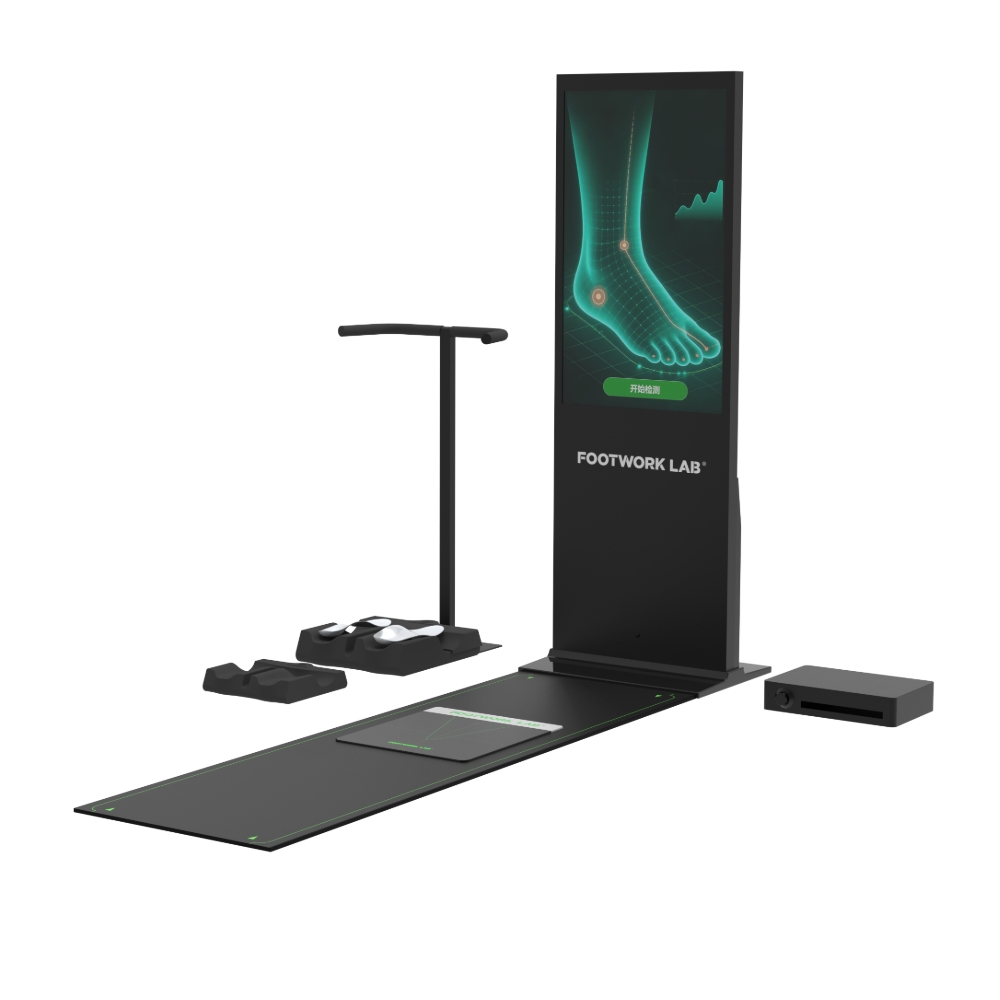

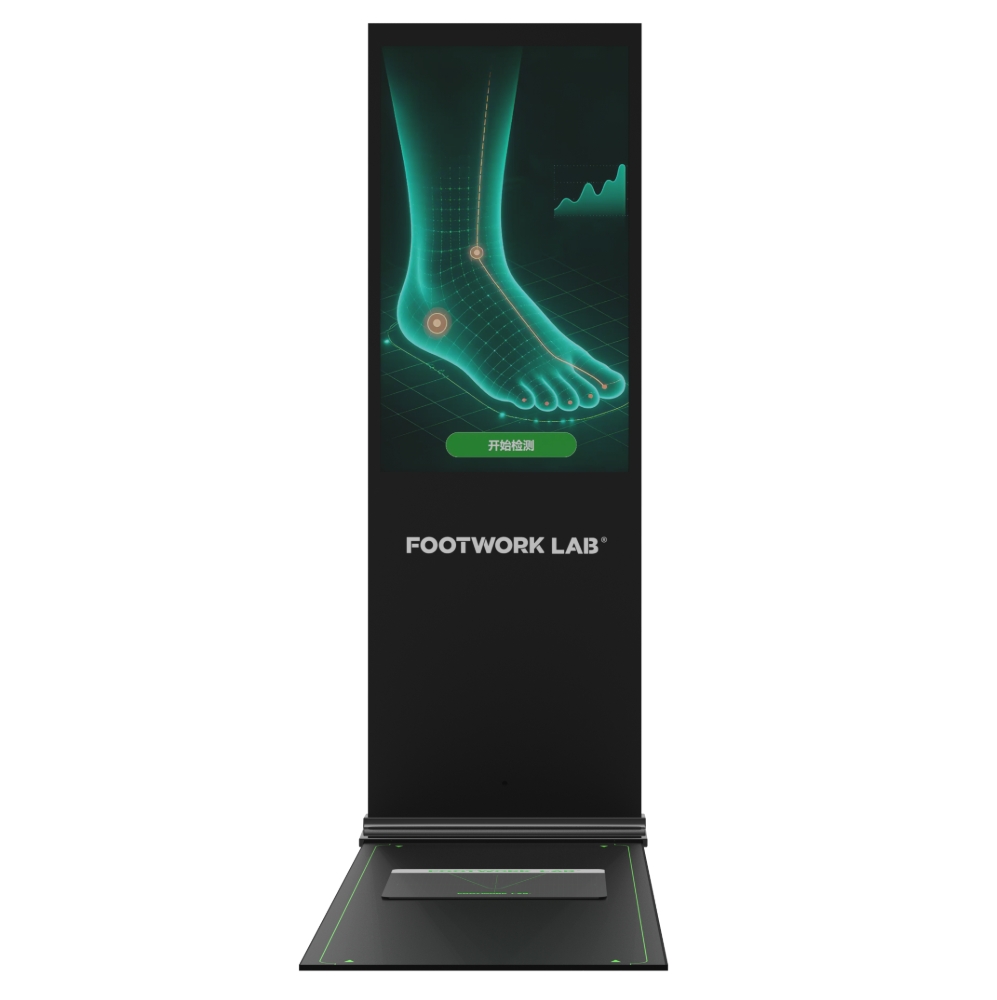

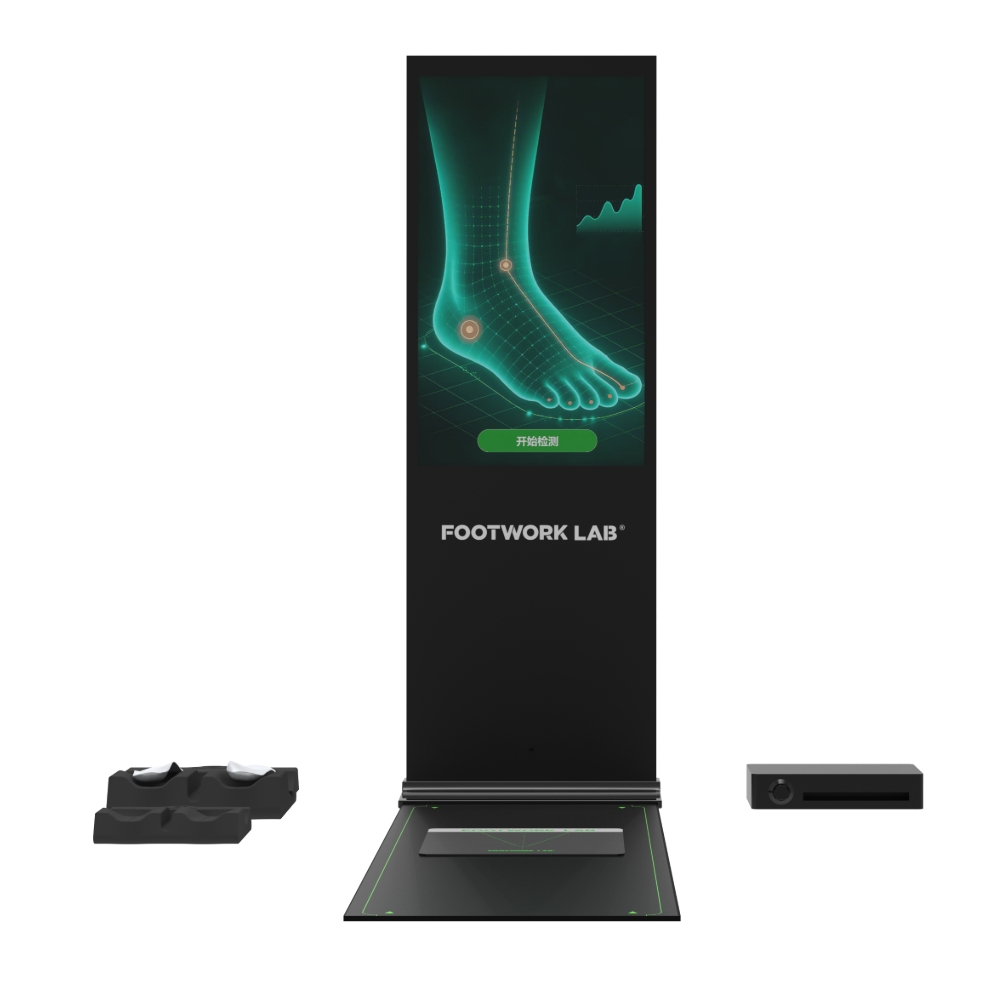

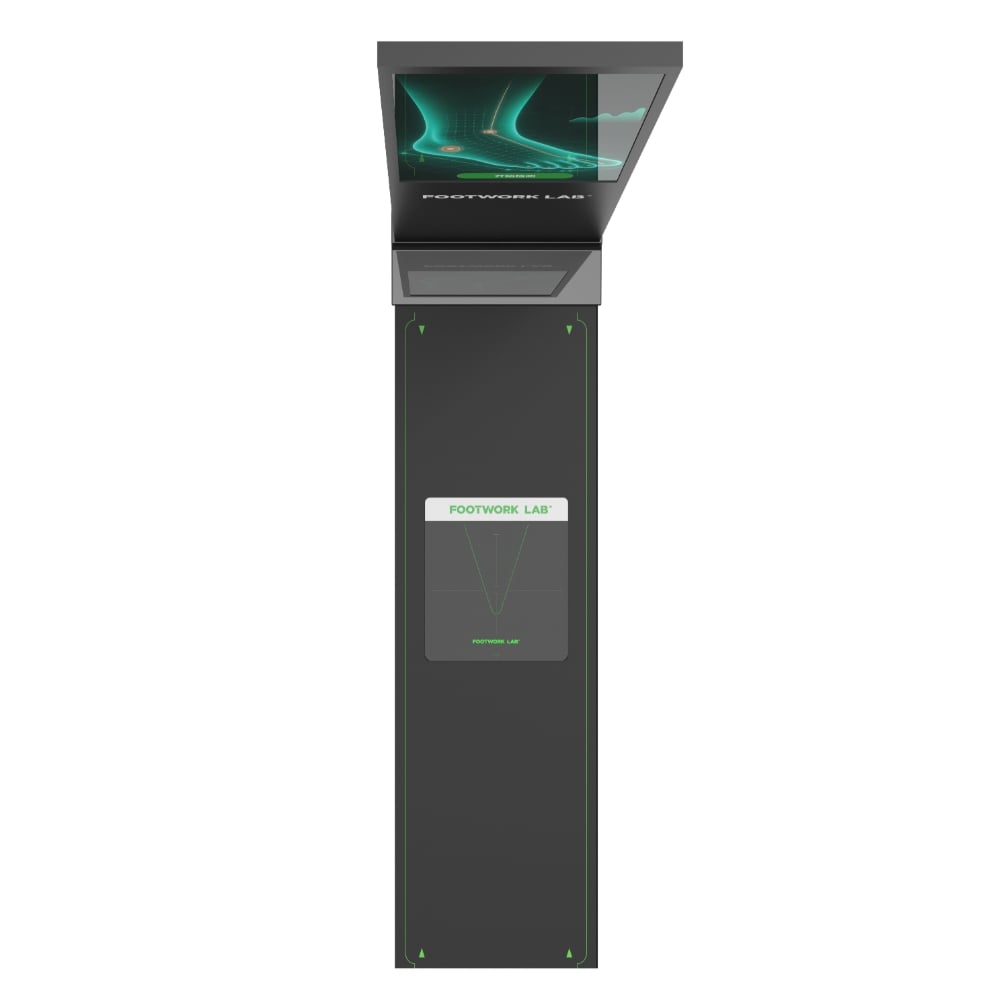

Foot Pressure And Force Line Detection Insoles Customization System

SCOPE OF APPLICATION

• Foot arch detection

• Lower limb biomechanical alignment detection

• Static foot pressure detection

• Dynamic gait detection

• Back and forth gait video recording

• Insoles customization

PRODUCT INTRODUCTION

Based on foot and lower limb force line images, a database is built; a large model analyzes the data; Al recommends shoe models; and supporting equipment customizes insoles on-site.

Based on foot images, lower limb force line images, and other data, a foot and ankle health database is built. Through large model analysis of user data, and based on the shoe product information entered into the system, Al recommendations are made. Simultaneously, custom insoles can be created on-site using the supporting insole customization equipment.

Intelligent detection and data acquisition system

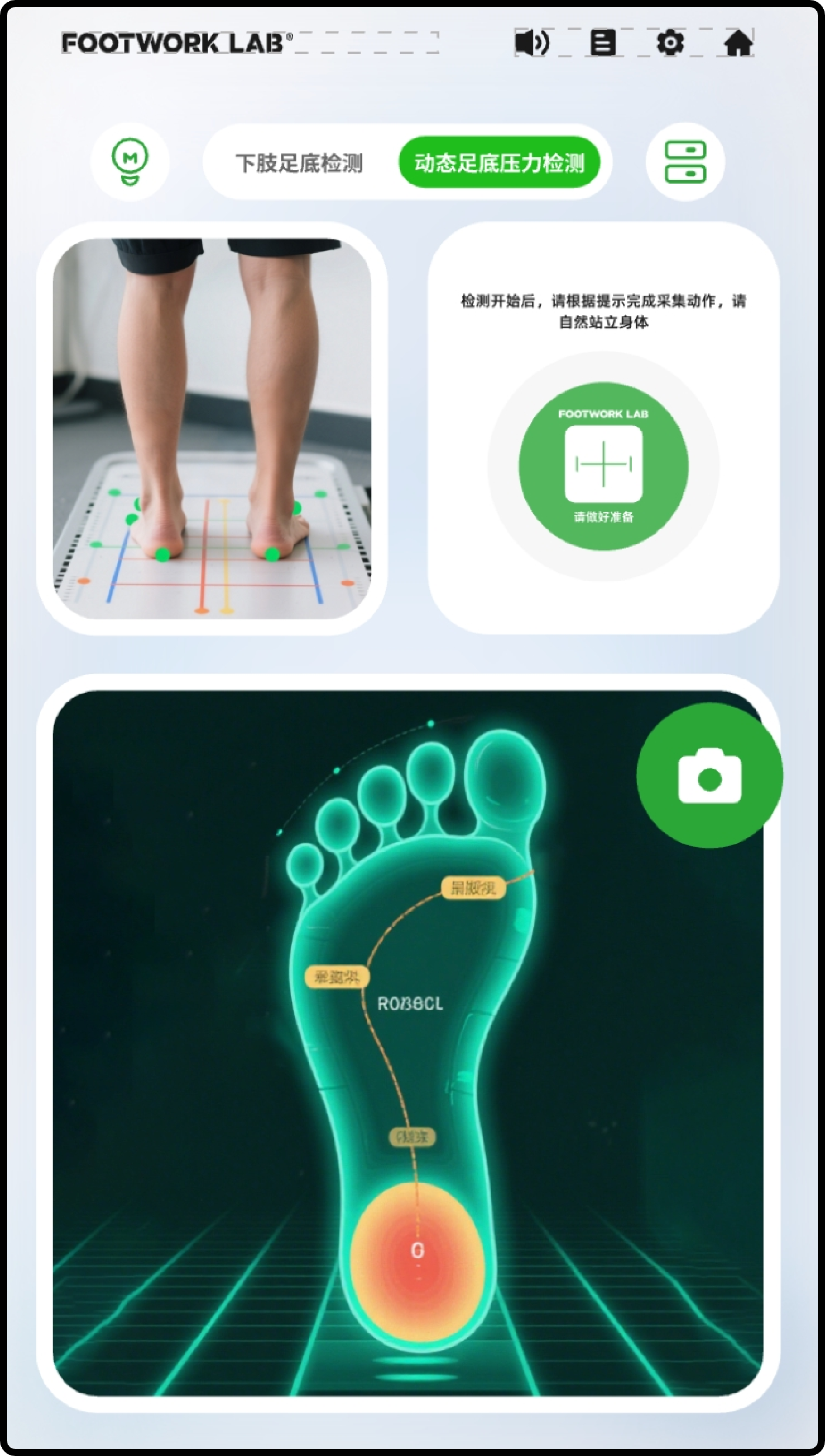

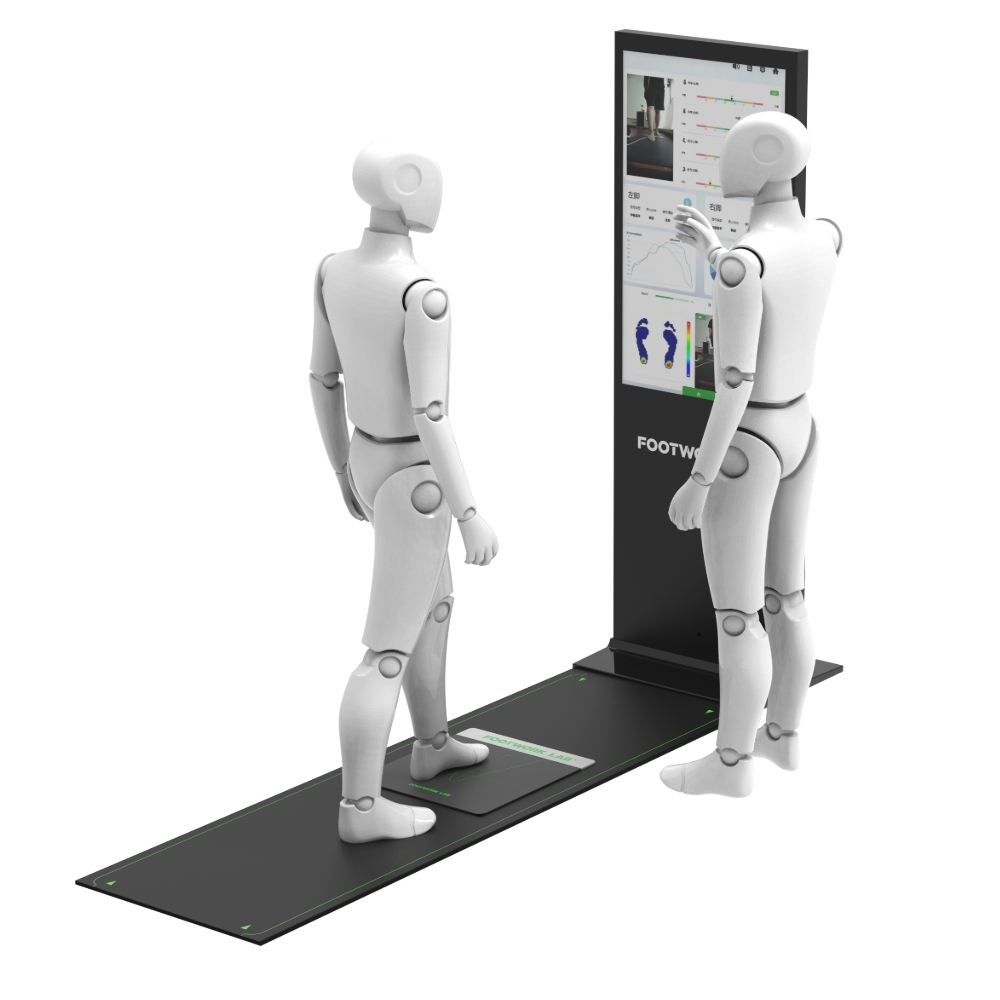

Specially designed for podiatric clinics, physical therapy clinics, and professional podiatrists, it supports doctors to complete gait scanning through voice/image guidance, accurately detecting users' foot pressure data during rest, walking, or exercise. The system is synchronously equipped with a biological force line detection function, which can collect images of plantar and lower limb force lines, comprehensively covering multidimensional data of foot morphology, lower limb biomechanics, and overall posture, providing complete biomechanical basis for subsequent analysis.

Ankle Health Database and AI Analysis Platform

Establish a professional ankle health database based on multi-source data such as plantar images and lower limb force lines. Through the intelligent analysis technology of large models, the system can deeply process user foot data, combine historical cases in the database with entered shoe product information, accurately evaluate the health status of users' ankles, and provide personalized shoe recommendations based on the analysis results, matching shoe products that meet biomechanical needs.

Comprehensive report and on-site customized service

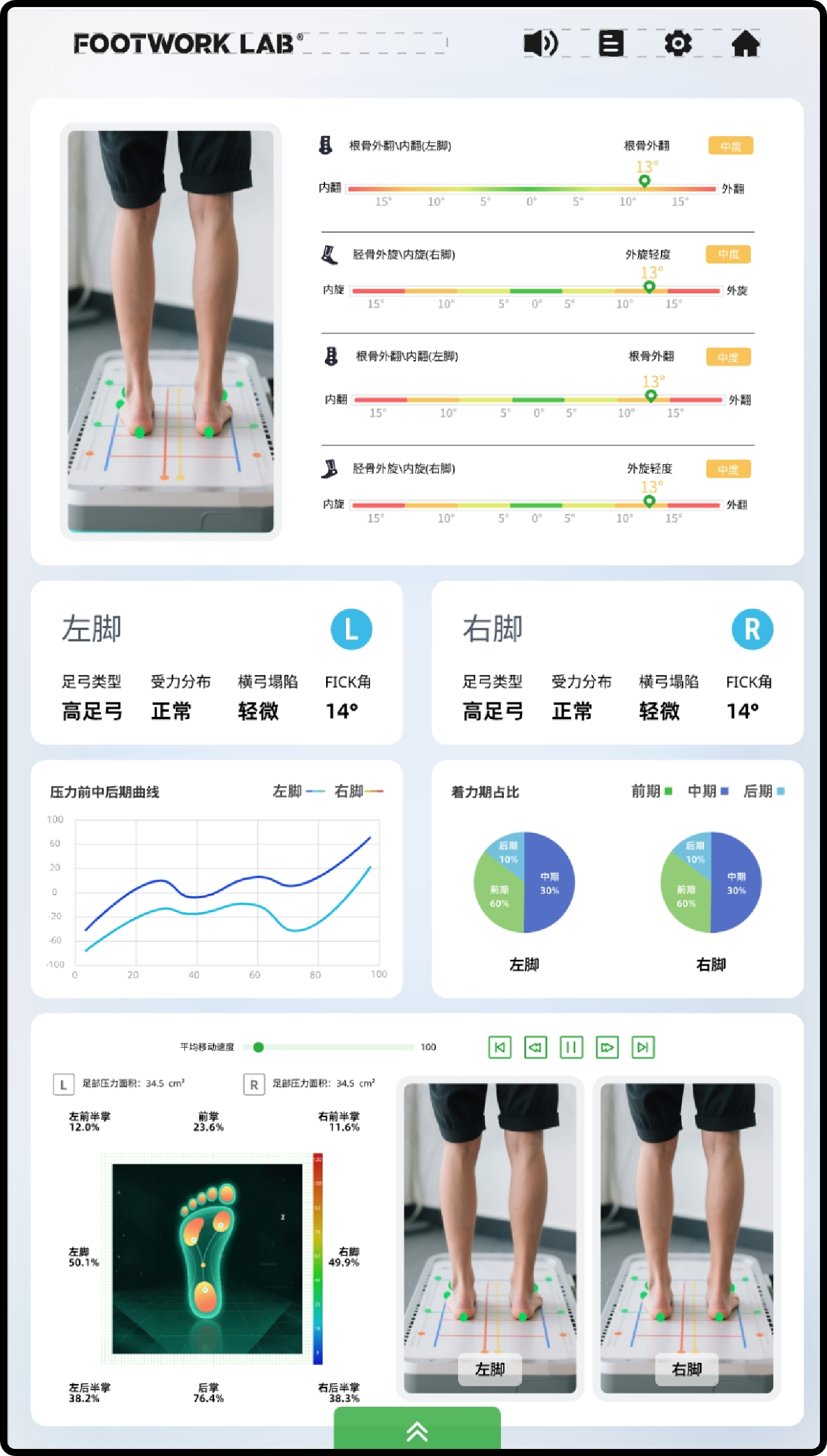

Support the generation of diverse analysis reports covering dimensions such as gait, biological force lines, and ankle health risks. With the support of customized insole equipment, it is possible to quickly complete the customization of orthotic insoles on site and provide targeted correction for foot problems; Combining AI recommended suitable shoe styles to optimize the patient's experience from diagnosis to intervention, meeting the needs of professional institutions for precise ankle health management.
